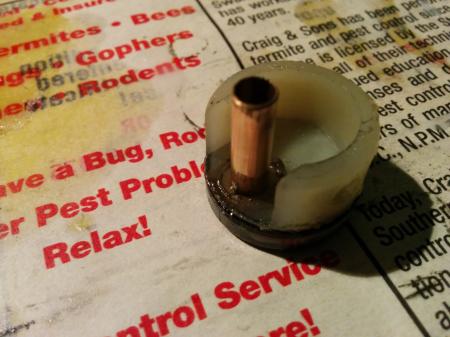

I finally took apart my Echo1 Red Star IGOR last night to upgrade it. It has a version 3 gearbox, but the cylinder head is not version 3. I have attached the photo below. Scouring the Internet, I noticed that it looks very similar to the veraion 7 cylinder head. I don't have a V7 cylinder head to compare. Does anyone know?
Thu, 31 Jul 2014 00:33:03 +0400
Not sure if you're still interested, or for anyone else with an echo 1 vss interested in this, but I saw your post and decided to buy a V7 cylinder head to try it out.
It does NOT fit. But there is hope. The nozzle position is exactly the same, so that's good. The problem is the sides of the cylinder head (where there are holes to fit into the gearbox) are too tall on a V7 to fit in the VSS's gearbox.
I am attempting to maybe mill down the sides of the V7 cylinder head to fit. Will update to let anyone interested if it works.
Wed, 29 Apr 2015 22:46:30 +0400
Yes. I'm still interested in this topic. Please do keep us up to date on it.
What do you mean the holes are "too tall"? Does that mean the gearbox pins, which goes into the holes, are slightly lower than where the holes are?

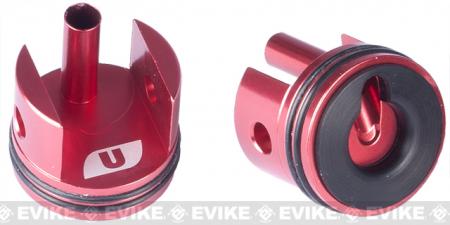

I've attached Evike's photo of a version 7 cylinder head to ease discussion.
Thu, 30 Apr 2015 02:59:23 +0400
I came across the Airsoft GI Custom VSS Interloper AEG Airsoft Gun (Black Card Custom). In this custom sniper build, the modified parts list includes a "Magic Box CNC Aluminum M14 AEG Cylinder Head". The M14 is based on a version 7 gearbox. So I guess that solves the mystery of which cylinder head the Echo1 Red Star IGOR uses.
Fri, 15 May 2015 21:14:31 +0400
Did your message disappear? Read the Forums FAQ.
TrackBack only accepted from WebSite-X Suite web sites. Do not submit TrackBacks from other sites.
Title: Echo1 Red Star IGOR Air Nozzle Comparison
Weblog: Airsoft SpecOps
Excerpt: The Echo1 Red Star IGOR has a proprietary air nozzle. But this air nozzle is not air sealed with an o-ring, therefore is a candidate for upgrade. It's unlikely Echo1, or actually S&T (Echo1 and AY are rebrands), would design a completely new air nozzle for this VSS Vintorez airsoft gun. It's likely . . .
Tracked: Thu, 31 Jul 2014 01:22:26 +0400
Title: Build a Full-Auto 530 FPS Echo1 Red Star IGOR VSS Vintorez Sniper Rifle
Weblog: Airsoft SpecOps
Excerpt: Airsoft GI has done it! It has built a Echo1 Red Star IGOR into what a VSS Vintorez replica sniper rifle should be... a 530-540 FPS beast: Airsoft GI Custom VSS Interloper AEG Airsoft Gun (Black Card Custom). It's all sold out now, but Airsoft GI has listed all the parts that goes into it. You can u . . .
Tracked: Fri, 15 May 2015 21:24:56 +0400
